Introduction

Section titled “Introduction”

Multi-factor authentication (MFA) is the second step after a correct email and password. Orbit parks the session as pending, sends the operator to /mfa-challenge, and only then lets them into the panel.

Two built-in providers cover the usual cases:

  • AppAuthentication — six-digit codes from an authenticator app (RFC 6238 TOTP), plus one-time recovery codes
  • EmailAuthentication — a code delivered through a Mailer (MemoryMailer for demos, SmtpMailer for production)
app/providers/orbit_panel_provider.py
from almasix.orbit.panels.mfa import AppAuthentication, EmailAuthentication, SmtpMailer


Panel.make("admin")
    .login()
    .multi_factor_authentication(
        AppAuthentication(brand_name="Orbit"),
        EmailAuthentication(
            mailer=SmtpMailer(
                "smtp.example.com",
                587,
                username="orbit",
                password="secret",
                from_address="noreply@example.com",
            )
        ),
    )

Flags on the user object decide which methods are live: mfa_app_enabled / mfa_app_secret / mfa_recovery_codes for the app, mfa_email_enabled plus email for the mailbox. Persist those columns on your account model.

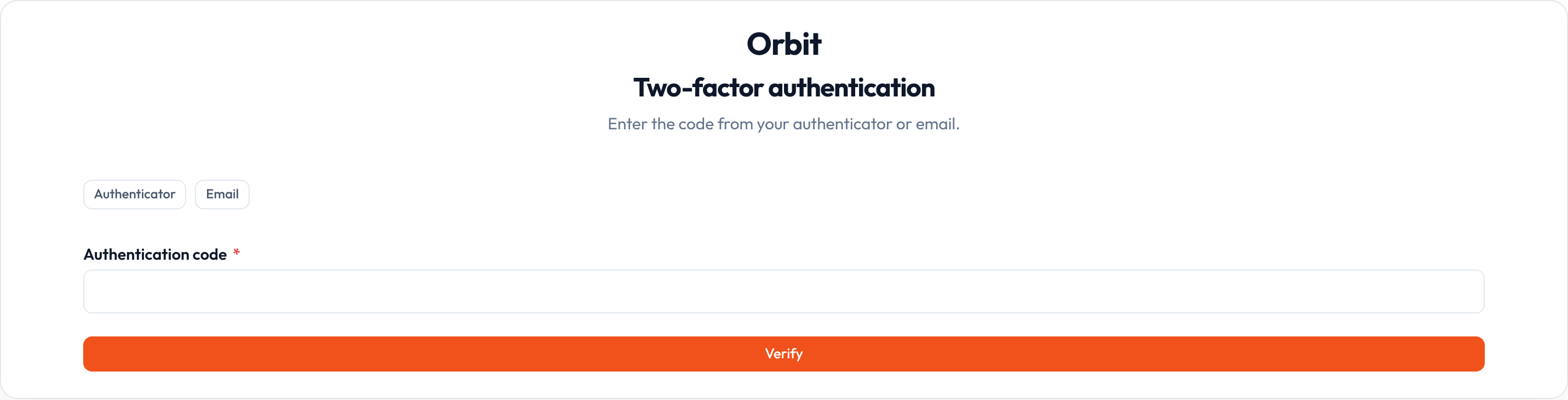

Orbit MFA challenge (light)

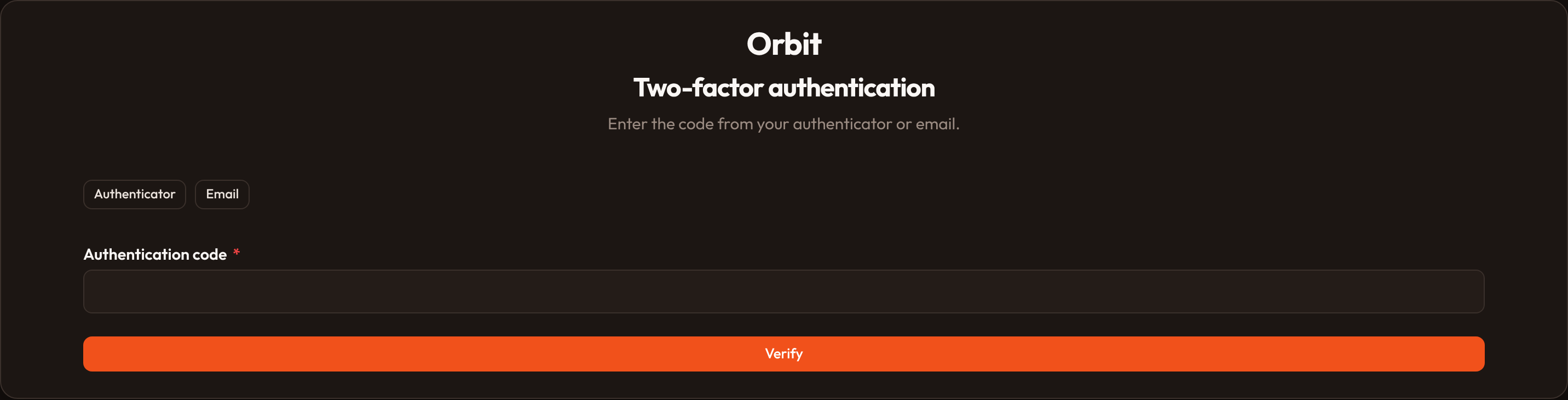

Orbit MFA challenge (dark)

Authenticator app

Section titled “Authenticator app”

AppAuthentication.provision(user) creates a base32 secret and an otpauth:// URI the operator pastes into their app. verify(user, code) accepts the current TOTP (one period of clock skew) or a recovery code, which is then consumed.

app/orbit/auth/mfa.py
from almasix.orbit.panels.mfa import AppAuthentication


app = AppAuthentication(brand_name="Orbit")
details = app.provision(user)
# details["secret"], details["otpauth_uri"], details["recovery_codes"]

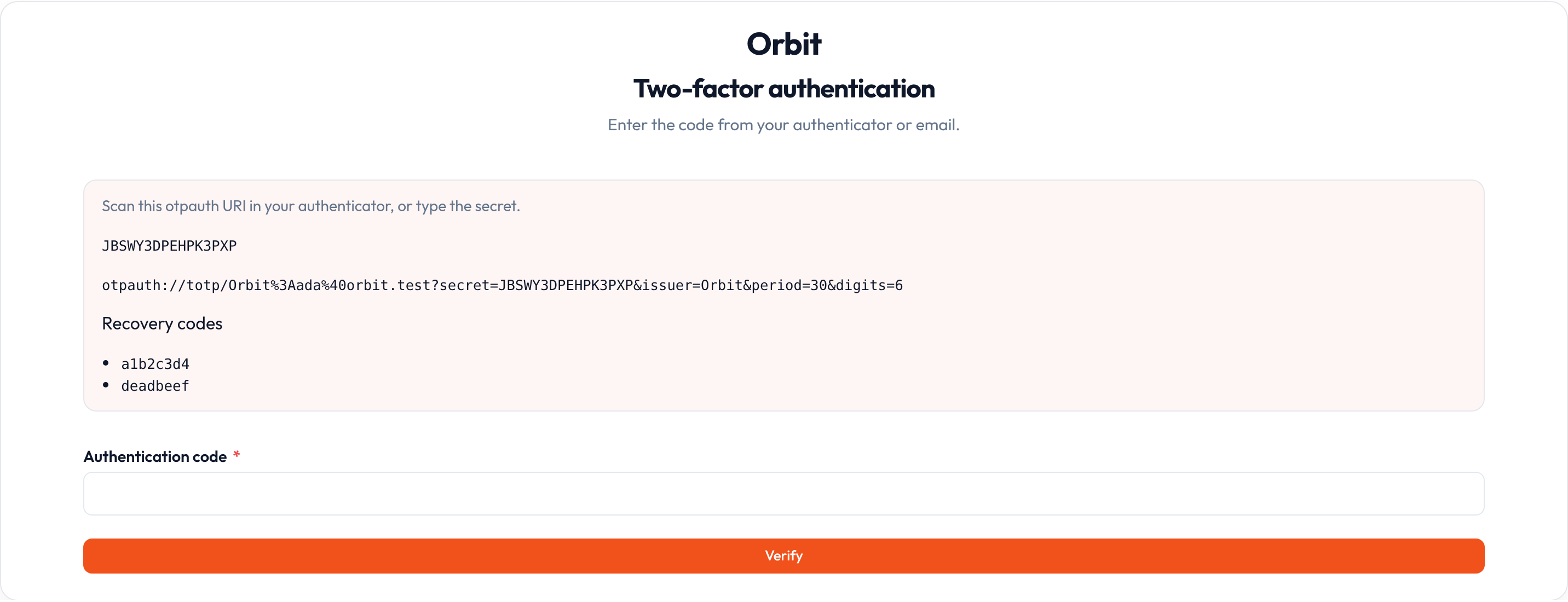

Orbit authenticator setup (light)

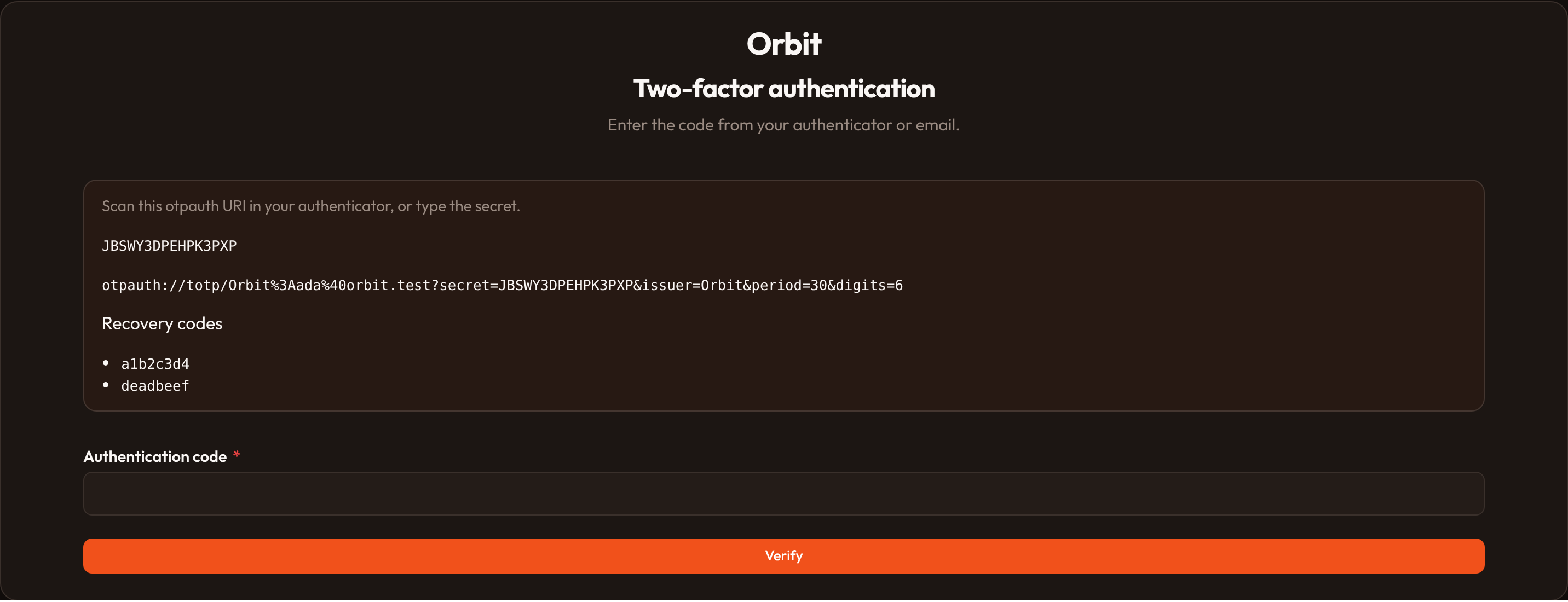

Orbit authenticator setup (dark)

Email codes

Section titled “Email codes”

EmailAuthentication.send_code(user) stores a six-digit code (default ten minutes) and hands it to the mailer. The default MemoryMailer appends to .outbox — swap in SmtpMailer when you have an SMTP host. verify consumes the code once.

app/orbit/auth/mfa.py
from almasix.orbit.panels.mfa import EmailAuthentication, MemoryMailer


mailer = MemoryMailer()
EmailAuthentication(mailer=mailer).send_code(user)
assert mailer.outbox[-1]["to"] == user.email

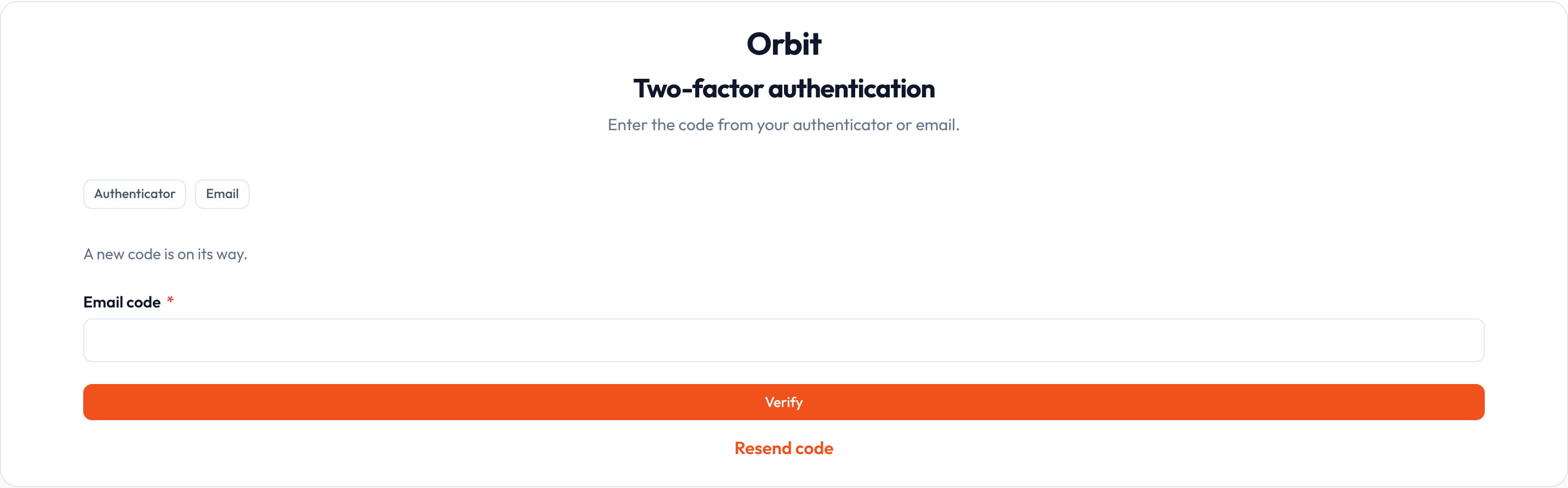

Orbit email MFA (light)

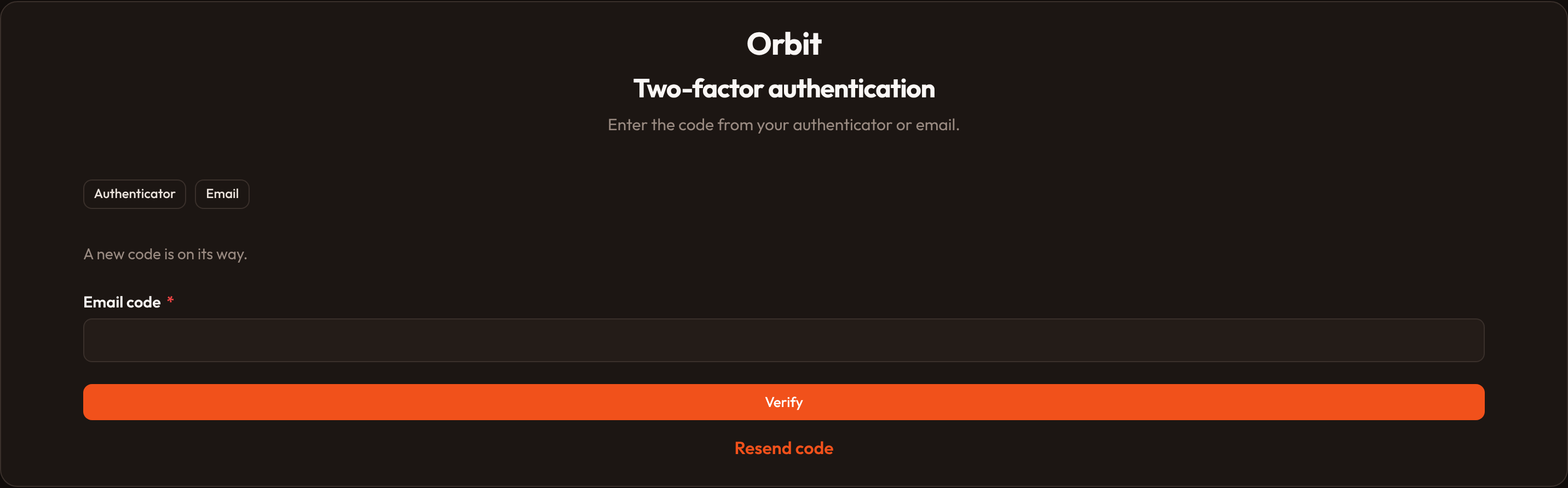

Orbit email MFA (dark)

Sign-in flow

Section titled “Sign-in flow”
  1. LoginHost.authenticate checks email and password.
  2. If any registered provider is_enabled(user), Orbit sets orbit_mfa_pending and redirects to {panel}/mfa-challenge.
  3. MfaChallengeHost.verifyMfa checks the code, clears the pending flag, and sends the operator home.
  4. While pending, other panel routes redirect back to the challenge. Logout clears the flag.

Implement MfaProvider (get_id, is_enabled, get_challenge_form, get_management_schema, verify, optional send_code / provision) for a custom method.

See also Users overview.
