Introduction

Section titled “Introduction”

ImageEntry displays one URL or a stack of images from list state — avatars, covers, and team stacks on a record view. Empty state uses .placeholder(...) or .default_image_url(...); placeholders never become <img> tags.

Like other entries, the label stacks above the image by default so covers and avatars read as labeled fields on the detail sheet. Reach for .circular() / .stacked() when the layout should match social-style avatars rather than a rectangular cover.

Basic image

Section titled “Basic image”
app/orbit/resources/post_resource.py
from almasix.orbit.infolists import ImageEntry


ImageEntry.make("photo").label("Cover").width(96).height(96).alt("Cover")

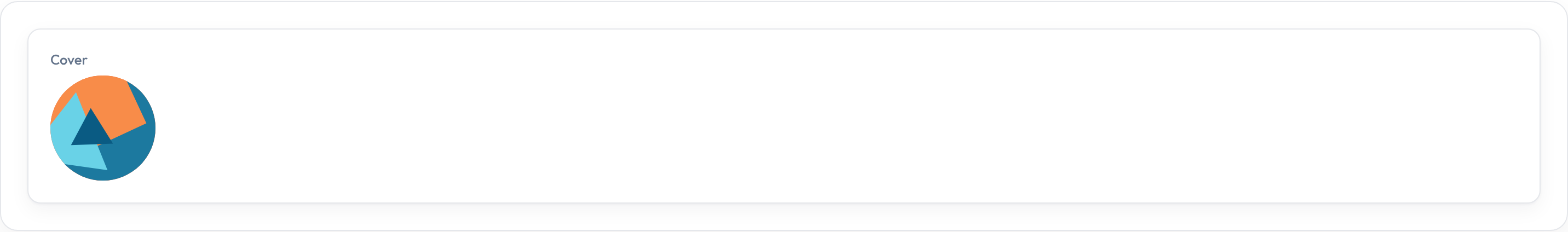

Orbit Image entry basic (light)

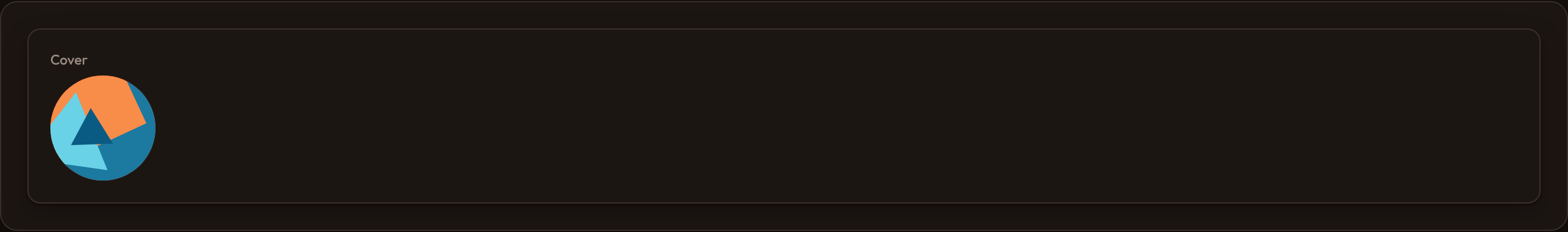

Orbit Image entry basic (dark)

Circular and square

Section titled “Circular and square”

.circular() rounds the image; .square() forces a square crop (clears circular).

app/orbit/resources/post_resource.py
ImageEntry.make("photo").label("Avatar").circular().size(56).alt("Avatar")

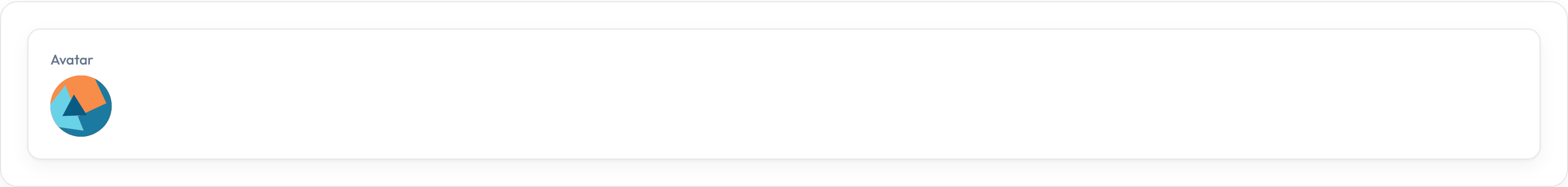

Orbit Image entry circular (light)

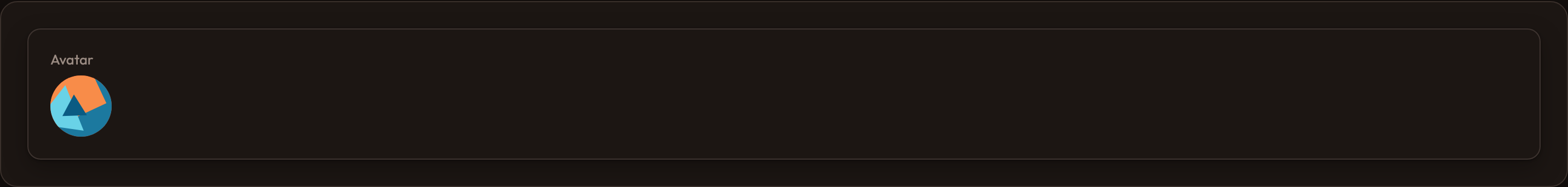

Orbit Image entry circular (dark)

Size helpers

Section titled “Size helpers”
Method Notes
.size(56) / .image_size(56) Pixel square, or named size class
.width / .height Independent dimensions
.ring(2) Avatar ring width
.overlap(10) Stack overlap (stacked mode)

Stacked images

Section titled “Stacked images”

When state is a list of URLs, .stacked() overlaps them. .limit(n) caps how many are shown and renders +N for the overflow.

app/orbit/resources/post_resource.py
ImageEntry.make("photos")
    .label("Team")
    .stacked()
    .circular()
    .limit(2)
    .overlap(10)
    .ring(2)
    .size(40)

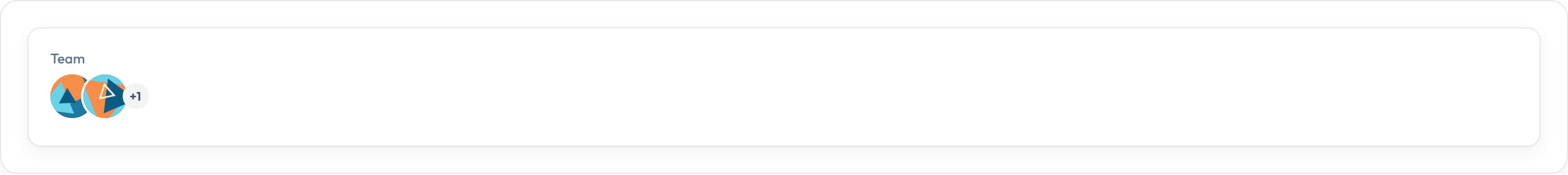

Orbit Image entry stacked (light)

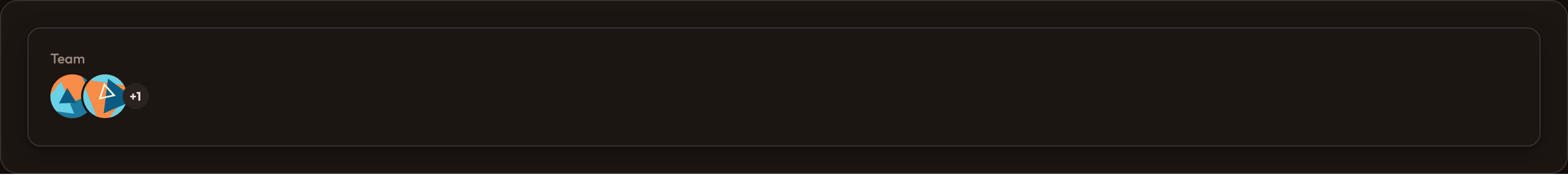

Orbit Image entry stacked (dark)

Defaults, alt, and extra attributes

Section titled “Defaults, alt, and extra attributes”
app/orbit/resources/post_resource.py
ImageEntry.make("photo")
    .default_image_url("/images/fallback.png")
    .alt(lambda record, **_: record.get("title", "Image"))
    .extra_img_attributes({"loading": "lazy"})

API cheat sheet

Section titled “API cheat sheet”
Method Notes
.circular / .square Shape
.size / .image_size / .width / .height Dimensions
.stacked / .limit / .overlap / .ring Stack layout
.default_image_url Fallback URL when empty
.alt / .extra_img_attributes Accessibility + img attrs
.placeholder Text when empty (no default image)
