Schemas overview

Introduction

Schemas are the nesting fabric under forms, infolists, and anything else that needs a component tree in the panel. A Schema holds state, dehydrates fields, and renders children — it is the shared substrate so create/edit forms, read-only show pages, and custom panel pages speak the same composition language.

Layouts (Section, Tabs, Grid, Wizard, …) organize children without caring whether those children are form fields or infolist entries. Primes, callouts, and empty states add non-field chrome when you need display-only pieces beside inputs.

Compose with .schema([...]) / .components([...]), hydrate with .state() / .fill(), read back with .get_state() / .dehydrate(), and render HTML for Conduit hosts. Start here when you need structure; jump to Forms or Infolists when you need typed fields or entries.

Available components

Form fields

Form fields live under almasix.orbit.forms — text inputs, selects, toggles, repeaters, and more. Nest them inside any layout or top-level schema.

Infolist entries

Read-only entry components live under infolists. They share the same schema nesting model as forms.

Layout components

Component	Role
Grid	Fixed column count
Flex	Flex row that stacks below a breakpoint
Group	Fuse children without fieldset chrome
Split	Side-by-side panes that stack
Fieldset	Native <fieldset> + legend
Section	Heading, icon, collapsible / aside / compact
Tabs	Horizontal panels with icons and badges
Wizard	Multi-step nav with continue / back / skip

See also the layouts gallery.

Prime components

Primes are read-only display pieces — Text, Icon, Image, and UnorderedList — for infolists and inline form summaries.

Other schema components

Component	Role
Callout	Info / success / warning / danger banners
Empty state	Zero-data placeholders with optional actions

An example schema

app/orbit/schemas/user_profile.py

from almasix.orbit.schemas import Schema, Grid, Section
from almasix.orbit.forms import TextInput, Select, Toggle

Schema.make("user")
    .columns(1)
    .schema([
        Section.make("profile")
            .heading("Profile")
            .description("Public details for this account.")
            .icon("heroicon-o-user")
            .schema([
                Grid.make()
                    .columns(2)
                    .schema([
                        TextInput.make("first_name").required(),
                        TextInput.make("last_name").required(),
                        TextInput.make("email").email().column_span(2),
                        Select.make("role").options({
                            "admin": "Admin",
                            "editor": "Editor",
                        }),
                        Toggle.make("active").label("Active"),
                    ]),
            ]),
    ])

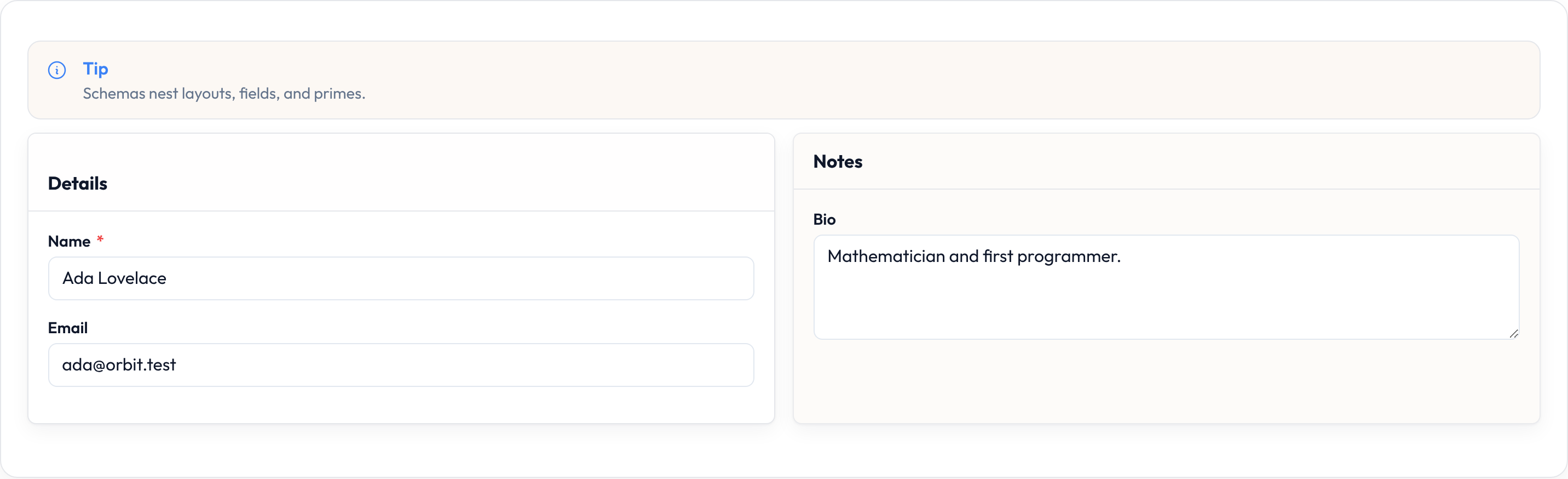

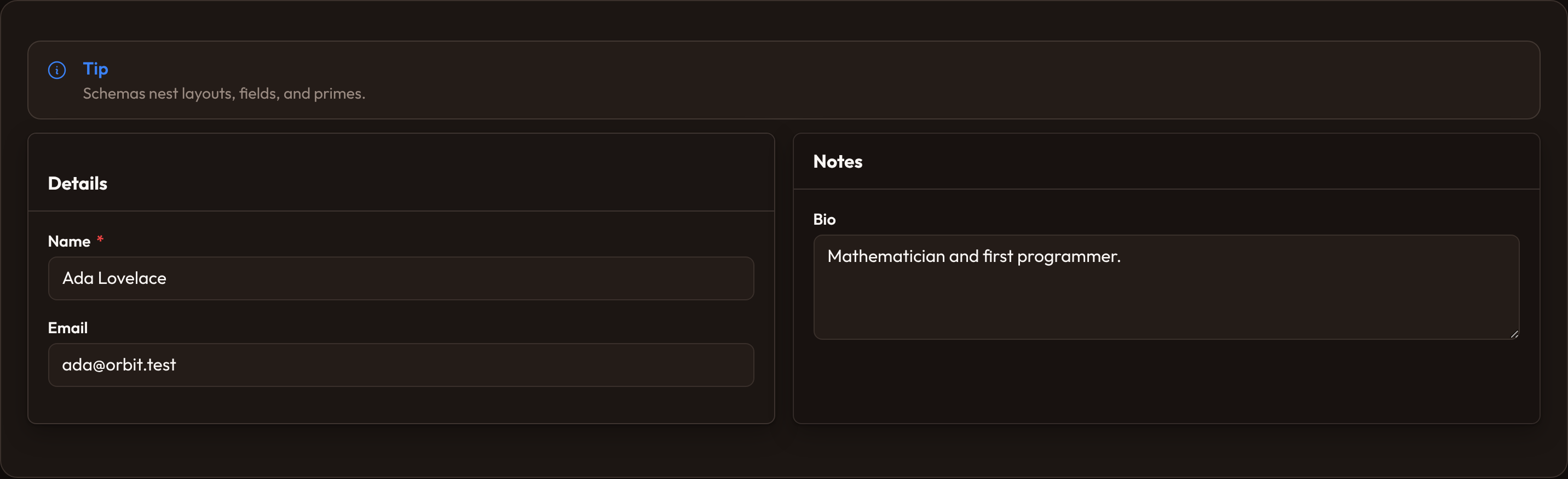

A typical section chrome shot (same nesting idea):

Component utility injection

When you pass a callable to a fluent helper (visibility, labels, prime content, dehydrate mutators, and similar), Orbit’s evaluate() injects only the kwargs the callable declares. Common utilities:

Utility	Meaning
state	Current field / component state (or the schema state bag, depending on call site)
record	Bound record when rendering against a model / dict row
operation	Create / edit / view context from .operation(...)
component	The component instance being evaluated

app/orbit/schemas/conditional.py

TextInput.make("publisher")
    .visible(lambda operation=None, **_: operation == "edit")

Text.make()
    .content(lambda state=None, record=None, **_: record.get("title") if record else state)

Set the operation on the schema (or pass it through render context):

app/orbit/schemas/edit_user.py

Schema.make("user").operation("edit").schema([...])
# schema.get_operation() → "edit"

Deferring loading

Mark a schema (or a layout) so hosts can load chrome asynchronously — emits data-defer="true":

app/orbit/schemas/heavy.py

Schema.make("dashboard").defer_loading().schema([...])

Grid.make().defer_loading().columns(3).schema([...])

Global settings

Register defaults for every schema (e.g. in a provider boot hook):

app/providers/orbit_panel_provider.py

from almasix.orbit.schemas import Schema

Schema.configure_using(lambda schema: schema.columns(1))

Callbacks run inside Schema.make(...) before your local fluent chain.

Schema basics

Method	Role
.components / .schema	Set the child tree
.columns	Hint for grid-ish outer chrome (or-schema-cols-N)
.state	Replace the hydrated state dict
.fill	Merge keys into the state dict
.get_state	Read the current state bag
.dehydrate	Collect dehydrated field values (walks nested layouts)
.render	Return HTML for the tree
.operation / .get_operation	Create / edit / view context
.defer_loading	Mark for deferred client load
.configure_using	Class-level default configurator

app/orbit/schemas/hydrate.py

schema = Schema.make("post").schema([TextInput.make("title")])
schema.fill({"title": "Hello"})
schema.get_state()   # {"title": "Hello"}
schema.dehydrate()   # {"title": "Hello"}

Layout gallery

Page	What you’ll find
Layouts	Shared layout APIs and composition patterns
Grid	.columns, .grid_container, dense / gap
Flex	.grow, .from_breakpoint
Group	Chrome-free fuse + optional columns
Split	.from_breakpoint / .from_
Fieldset	Legend grouping; .contained(False) for bare
Sections	Heading, collapse, aside, compact, persist
Tabs	Icons, badges, .persist_tab, .active_tab
Wizards	Steps, skippable, start step
Callouts	Status helpers + footer actions
Empty states	Heading, icon, actions
Primes	Text, icon, image, unordered list
