Columns overview

Introduction

Columns are the cells of an Orbit table. Each column has a name (usually a record attribute path), a type that controls how the value renders, and optional fluent helpers for sort, search, alignment, links, and visibility.

Start with a type from the catalog below (TextColumn, ImageColumn, BooleanColumn, …), then chain shared helpers from the Column base — for example .searchable(), .sortable(), or .toggleable().

from almasix.orbit.tables import Table, TextColumn, BadgeColumn, ImageColumn

Table.make("inventory").columns([
    ImageColumn.make("avatar_url").circular().size(32),
    TextColumn.make("name").searchable().sortable().weight("bold"),
    BadgeColumn.make("status").color("success"),
    TextColumn.make("price").money("USD").align_end(),
])

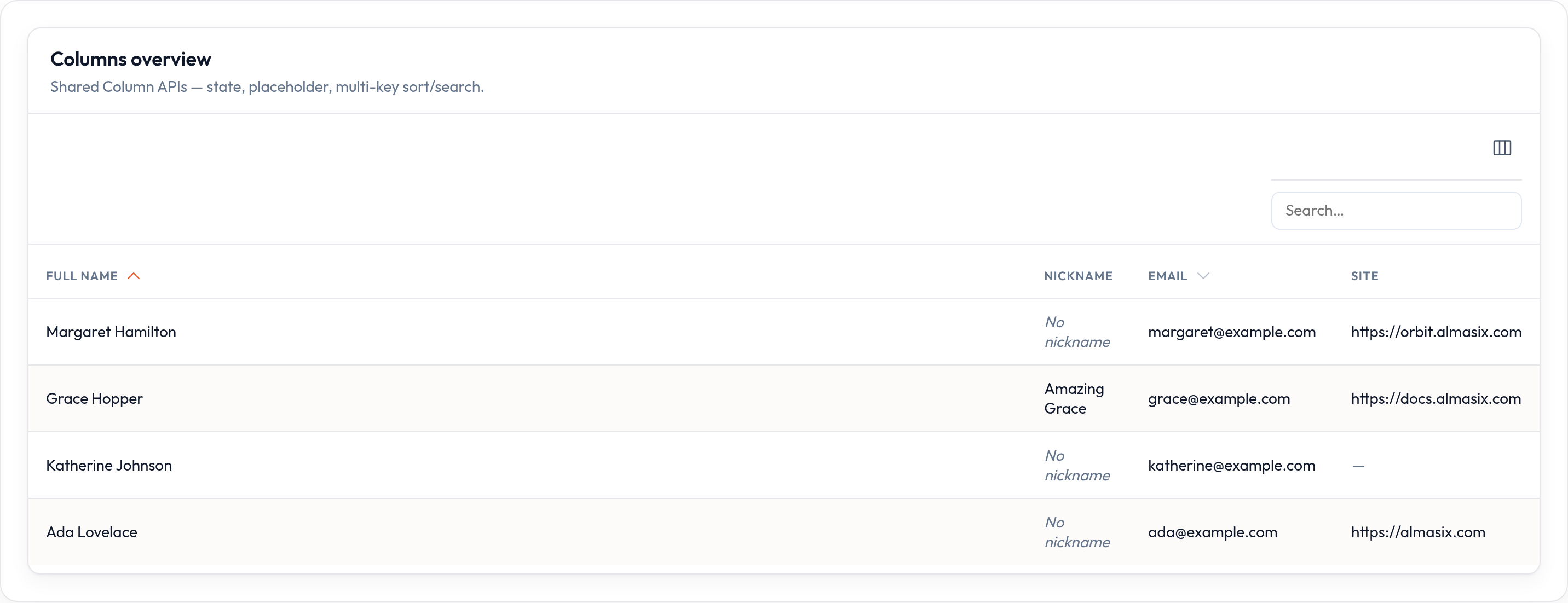

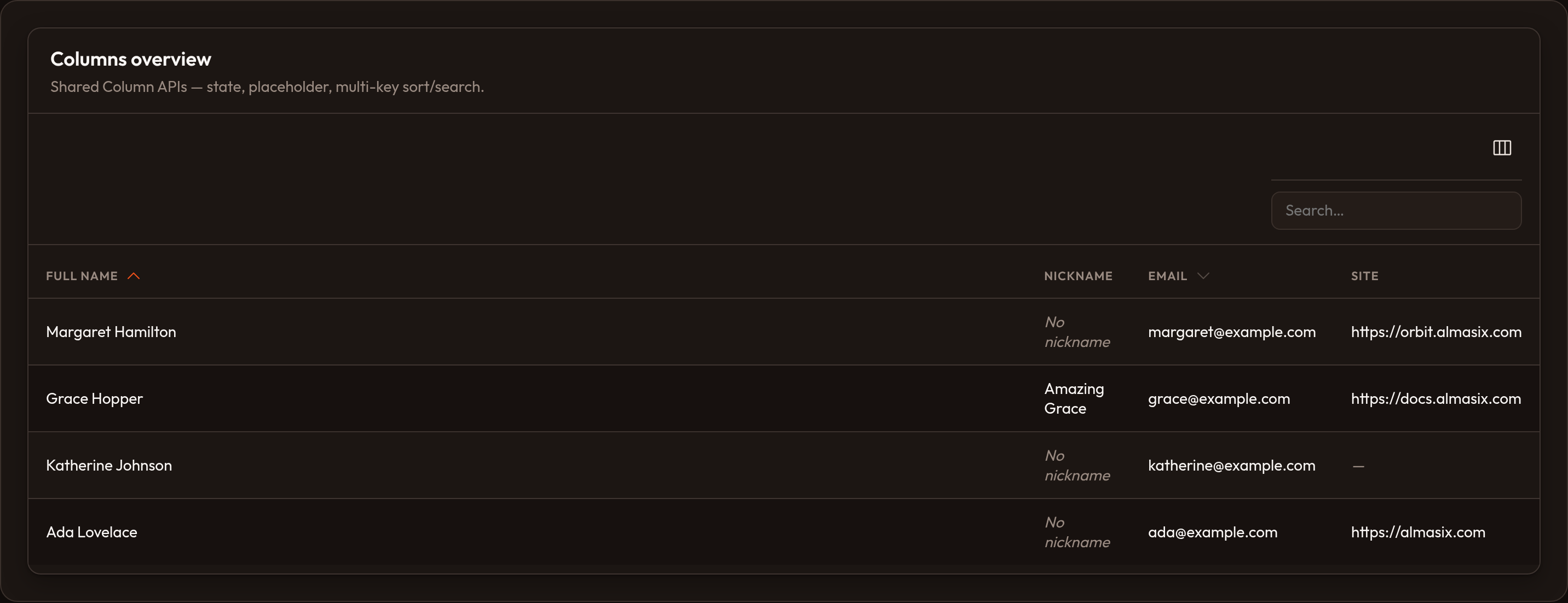

Live sample: Columns overview in examples/orbit-admin (ColumnsOverviewResource).

Catalog

Column	One-liner	Docs
TextColumn	Default cell — search, sort, money, dates, badges, links, markdown	Text
BadgeColumn	Text that always renders as a badge	Badge
BooleanColumn	Check / X icons for truthy / falsy state	Boolean
IconColumn	Icon from state, or boolean icons via .boolean()	Icon
ImageColumn	Avatars — circular, stacked, sized, default URL	Image
ColorColumn	Hex swatch, optionally copyable	Color
SelectColumn	Inline <select> — persists via update_column_state	Select
ToggleColumn	Inline toggle switch	Toggle
TextInputColumn	Inline text field	Text input
CheckboxColumn	Inline checkbox	Checkbox
TagsColumn	List (or CSV string) → badge cluster	Tags
ViewColumn	Custom HTML via .content(...)	View

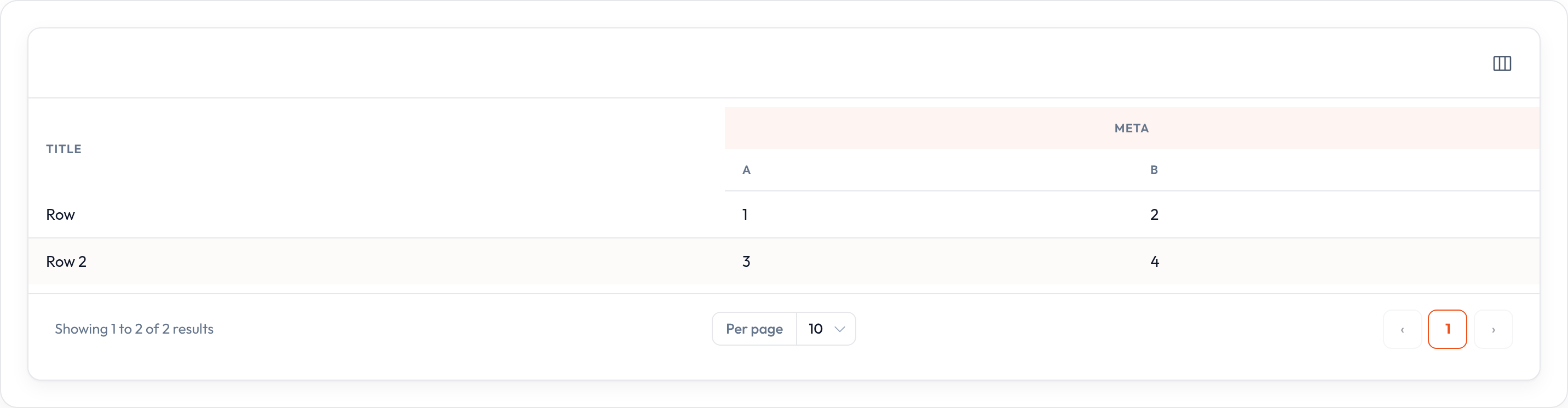

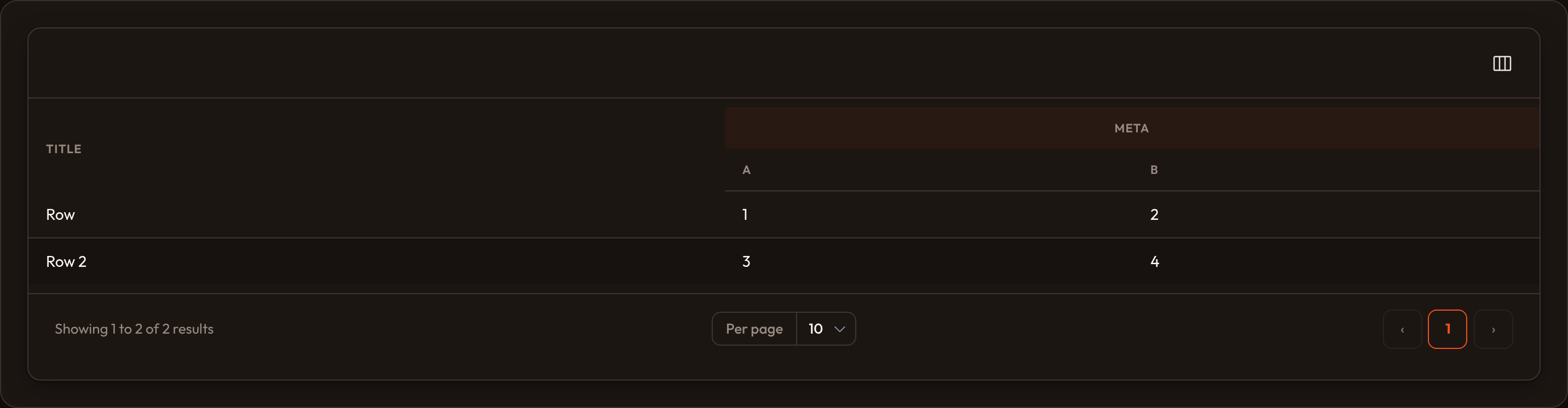

ColumnGroup	Dual header: ColumnGroup.make('Label', [cols])	Column group

Money & numbers

TextColumn.make("amount").money("USD")
TextColumn.make("cents").money("USD", divide_by=100).align_end()

Icons & booleans

Images & color

Editable columns

SelectColumn, TextInputColumn, ToggleColumn, CheckboxColumn
# persist via ListRecordsHost.update_column_state / orbit.js

Tags, view & groups

Column content (state)

By default the column name is an attribute path on each record (including dotted keys like author.name).

Custom state

TextColumn.make("full_name").state(
    lambda record: f"{record['first_name']} {record['last_name']}"
)

Default vs placeholder

.default(...) fills empty state and is treated as real state (images/colors still render). .placeholder(...) only shows muted display text when the state is empty.

TextColumn.make("nickname").default("—")
TextColumn.make("nickname").placeholder("No nickname")

Format without changing state

TextColumn.make("slug").format_state_using(lambda value: value.upper())

Label

TextColumn.make("name").label("Full name")

Sorting

TextColumn.make("name").sortable()
TextColumn.make("full_name").sortable(["last_name", "first_name"])
TextColumn.make("full_name").sortable(
    query=lambda records, direction: sorted(
        records,
        key=lambda r: (r["last_name"], r["first_name"]),
        reverse=direction == "desc",
    )
)

Table-level defaults: .default_sort("name", "desc") (see Tables overview).

Searching

TextColumn.make("name").searchable()
TextColumn.make("full_name").searchable(["first_name", "last_name", "email"])
TextColumn.make("name").searchable(
    query=lambda record, search: search in str(record.get("email", "")).lower()
)

Enable the search field with any searchable column, or .searchable() on the table.

Tooltips

TextColumn.make("email").tooltip("Click to copy")
TextColumn.make("email").header_tooltip("Primary contact")

Alignment, width, and wrapping

TextColumn.make("amount").align_end().vertically_align_center()
TextColumn.make("title").wrap_header().grow().width(240)

Links

TextColumn.make("website").url(lambda record, state, **_: state).open_url_in_new_tab()

Visibility

TextColumn.make("internal").hidden()
TextColumn.make("notes").visible(False)
TextColumn.make("email").visible_from("md").hidden_from("xl")

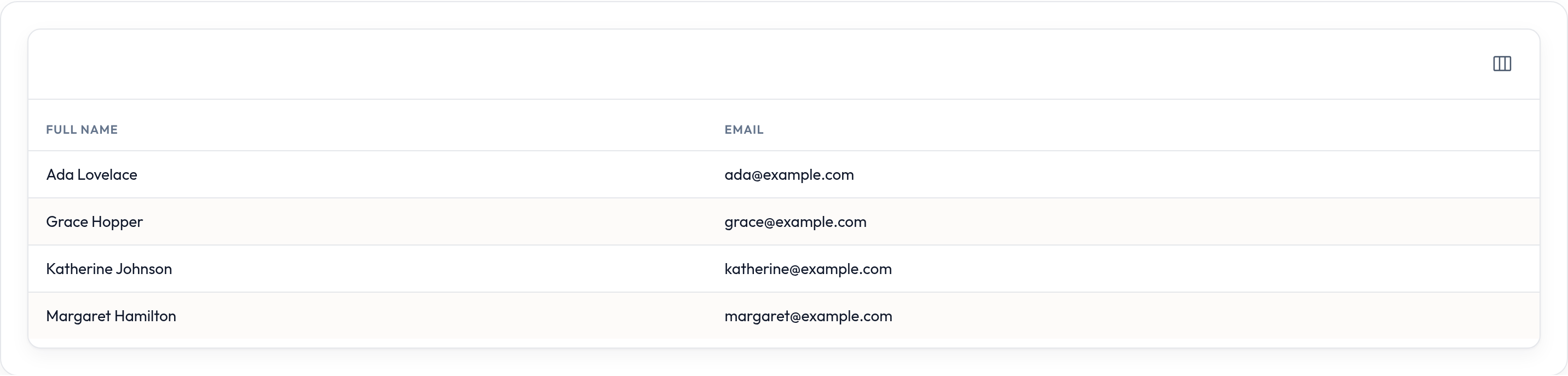

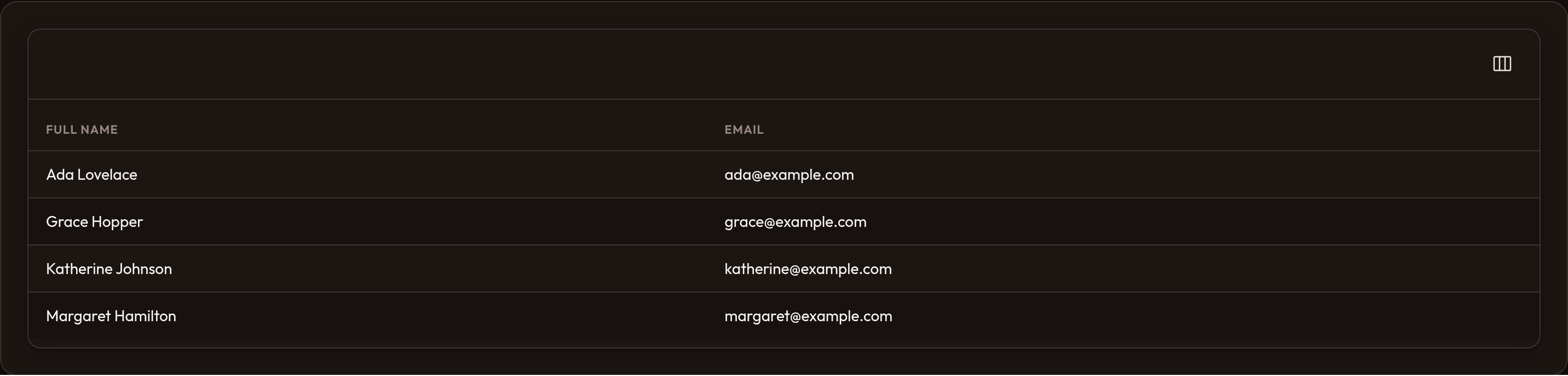

Toggleable columns & column manager

TextColumn.make("email").toggleable()
TextColumn.make("website").toggleable(is_toggled_hidden_by_default=True)

Table.make().reorderable_columns().columns([...])

Users toggle visibility in the columns dropdown. With .reorderable_columns(), they can also drag to reorder; the host persists order via reorderColumns.

Extra HTML attributes

TextColumn.make("status").extra_attributes({"data-tour": "status"})
TextColumn.make("status").extra_cell_attributes({"class": "or-status-cell"})
TextColumn.make("status").extra_header_attributes({"data-head": "status"})

Global configuration

from almasix.orbit.tables import Column, TextColumn

Column.configure_using(lambda column: column.align_start())

Shared helpers (quick list)

• .label(...) / .state(...) / .default(...) / .placeholder(...)
• .sortable(...) / .searchable(...) / .toggleable(...)
• .align_start() / .align_center() / .align_end() / .vertically_align_*()
• .tooltip(...) / .header_tooltip(...) / .wrap_header() / .width(...) / .grow()
• .format_state_using(...) / .url(...) / .open_url_in_new_tab()
• .color(...) / .visible_from(...) / .hidden_from(...) / .summarize(...)
• .extra_attributes(...) / .extra_cell_attributes(...) / .extra_header_attributes(...)

Layout wrappers (Split, Stack, Panel, …) nest columns inside one cell — see Layout.
