Custom fields

Introduction

Most admin UIs never need a custom field — compose TextInput, Select, Repeater, and schema layouts first. When you do, pick one of two paths:

ViewField — read-only HTML/callable content inside the schema (no input wiring).
Subclass Field — override render() for interactive controls that participate in state, validation, and dehydrate.

Custom fields still honor visibility, disabled state, rules, and content slots when you go through the base APIs. Scaffold with smith make:orbit-field Rating → app/orbit/shared/fields/rating.py (shared across panels; import where needed — never auto-discovered).

Prefer ViewField for HTML-only

When you only need a labeled summary, badge, or chart embed, use ViewField instead of a subclass. Defaults to _dehydrated = False.

from almasix.orbit.forms import ViewField

ViewField.make('aging')
    .label('Aging')
    .content(lambda record=None, **_: render_aging_partial(record))

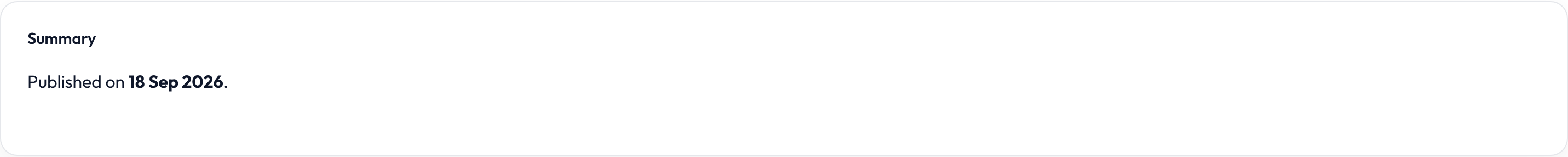

Orbit Prefer ViewField for HTML-only (light)

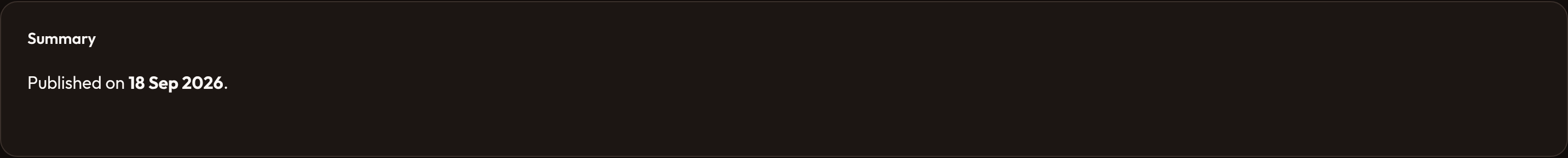

Orbit Prefer ViewField for HTML-only (dark)

Subclass Field

Override render(self, state=None, **ctx) and usually:

Return "" when not self.is_visible(**ctx).
Resolve name = self.get_state_path() or "".
Build control HTML with self._wire_binding(name), self._common_input_attrs(**ctx), and disabled/readonly checks.
Wrap with self.wrap_field(name, control, **ctx) so labels, hints, errors, affixes, and content slots keep working.

from typing import Any
from almasix.orbit.forms import Field
from almasix.orbit.support.html import e

class Rating(Field):
    def __init__(self, name: str | None = None) -> None:
        super().__init__(name)
        self._max = 5

    def max_stars(self, count: int) -> "Rating":
        self._max = count
        return self

    def render(self, state: Any = None, **ctx: Any) -> str:
        if not self.is_visible(**ctx):
            return ""
        name = e(self.get_state_path() or "")
        val = 1 if state is None else int(state)
        disabled = " disabled" if self.is_disabled(**ctx) or self.is_readonly() else ""
        control = (
            f'<input class="or-input or-rating" id="or-{name}" type="range" '
            f'min="1" max="{self._max}" name="{name}" value="{val}"{disabled}'
            f'{self._wire_binding(name)} />'
        )
        return self.wrap_field(name, control, **ctx)

Orbit Subclass Field (light)

Orbit Subclass Field (dark)

Using the custom field

Instantiate with .make() and chain inherited fluent helpers — rules, slots, disabled_on, trim, etc. all work because they live on Field / Component.

from app.orbit.shared.fields.rating import Rating

Rating.make('score')
    .label('Score')
    .max_stars(5)
    .required()
    .helper_text('1 = poor, 5 = excellent')
    .above_content('Customer rating')

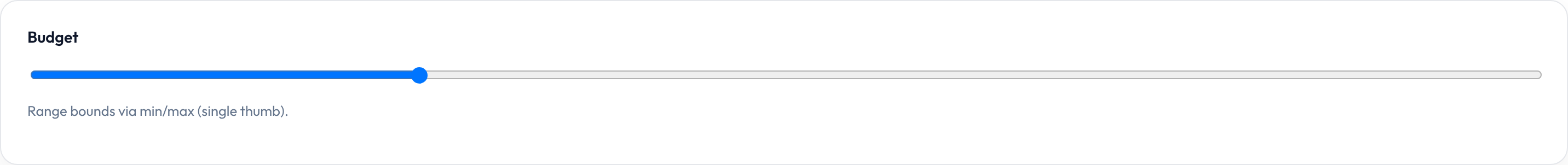

Orbit Using the custom field (light)

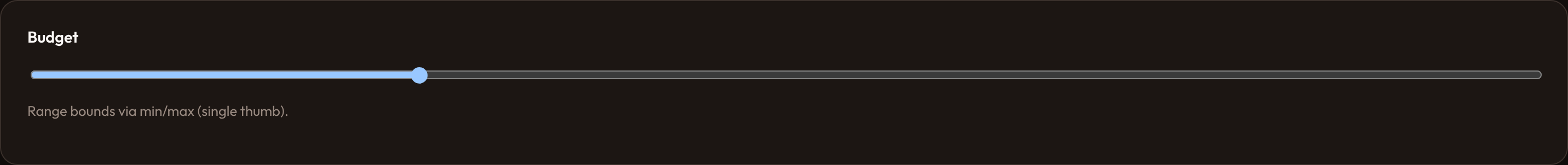

Orbit Using the custom field (dark)

Subclass ViewField

For structured read-only widgets that still want ViewField’s defaults (non-dehydrated, labeled body), subclass ViewField and override content or render.

from typing import Any
from almasix.orbit.forms import ViewField
from almasix.orbit.support.evaluate import evaluate
from almasix.orbit.support.html import e

class StatusBadge(ViewField):
    def render(self, state: Any = None, **ctx: Any) -> str:
        if not self.is_visible(**ctx):
            return ""
        name = e(self.get_state_path() or "")
        label = e(self.get_label(**ctx))
        raw = evaluate(self._view_html, state=state, **ctx) if self._view_html else state
        body = f'<span class="or-badge">{e(raw or "")}</span>'
        return (
            f'<div class="or-field or-field-ViewField or-field-StatusBadge" data-field="{name}">'
            f'<span class="or-label">{label}</span>'
            f'<div class="or-view-field">{body}</div></div>'
        )

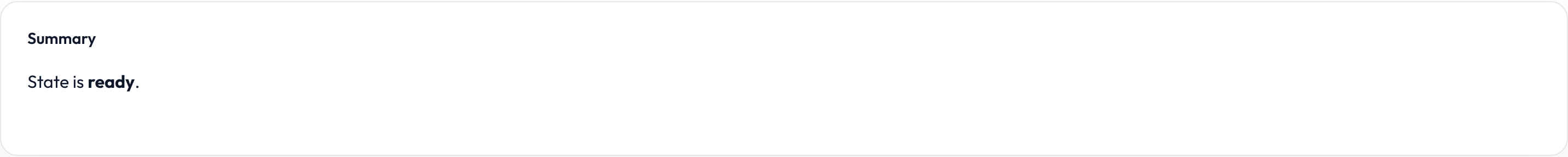

Orbit Subclass ViewField (light)

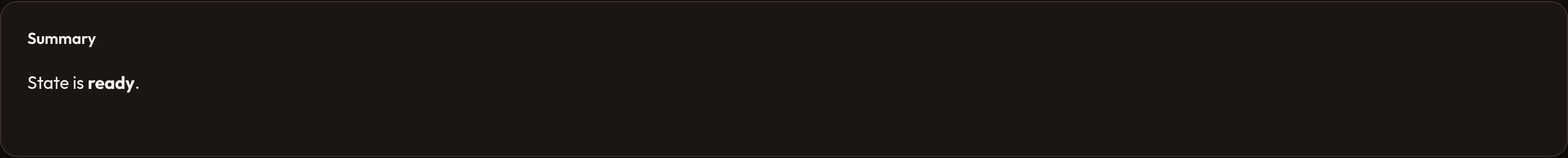

Orbit Subclass ViewField (dark)

Validation on custom fields

Call .rules() / .required() / helpers in the resource, or append defaults in __init__. Form.validate only sees fields returned by iter_fields with a state path — ensure make('score') sets the name.

Rating.make('score')
    .required()
    .rules(lambda value, **_: True if value and int(value) >= 1 else 'Pick a rating.')

Orbit Validation on custom fields (light)

Orbit Validation on custom fields (dark)

Dehydrate and trim

If your control stores strings, .trim(), .strip_characters(), and .dehydrate_state_using() apply through apply_dehydrate_transforms when the host dehydrates Field instances. Opt out of dehydration with .dehydrated(False) for display-only subclasses.

Rating.make('score')
    .dehydrate_state_using(lambda value, **_: int(value or 0))

Packaging and discovery

Put shared fields under app/orbit/shared/fields/ and import them in resources. Do not expect auto-discovery — register by import only. Keep SDUI in mind: to_dict() on Component dumps configuration for hosts that serialize schemas.

smith make:orbit-field Rating
# → app/orbit/shared/fields/rating.py

from app.orbit.shared.fields.rating import Rating

# Import explicitly — fields are never auto-discovered.
Rating.make('score').label('Score').required()

When not to subclass

Reach for a custom Field only when existing components cannot express the control. Composition is cheaper to maintain and keeps Orbit’s built-in fluent helpers (validation, slots, visibility, dehydrate) without extra code.

# Extra chrome around TextInput — content slots, not a subclass:
TextInput.make('sku').above_label('<span class="or-badge">Inventory</span>')

# Read-only HTML — ViewField / Placeholder:
ViewField.make('hint').content('Prices exclude tax.')

# Money / OTP — packaged fields:
MoneyInput.make('price').currency('USD')
OneTimeCodeInput.make('otp').length(6)

Orbit When not to subclass (light)

Orbit When not to subclass (dark)

Need	Prefer
Extra HTML around an existing input	Content slots / Section
Read-only HTML	`ViewField` / `Placeholder`
Repeated rows	`Repeater` / `Builder`
Currency	`MoneyInput`
OTP autocomplete	`OneTimeCodeInput`

See Validation for rule helpers and Closures for injectable utilities inside custom render() / content callables.
